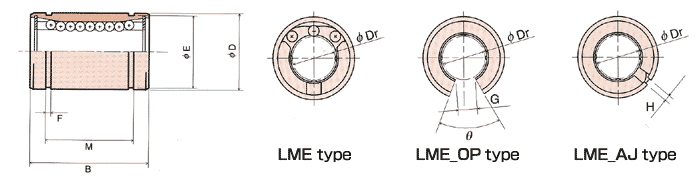

LME
series![]() |
กก
|
![]() |
![]() |
Type | Inscribed circle diameter Dr | Outer diameter D | Whole length B | M | E | F | Fundamental load rating | Fundamental static load rating | Number of lines Z | q | G | H | |||||
LME | LME OP | LME AJ | Reference size | Allowable tolerance | Reference size | Allowable tolerance | Reference size | Allowable tolerance | C(N) | Co(N) | |||||||
LME-5 | - | LME-5AJ | 5 | 0.008 0 |
12 | 0 -0.008 |
22 | 0 -0.2 |
14.5 | 11.5 | 1.1 | 69 | 147 | 4 | - | - | 1 |
LME-8 | - | LME-8AJ | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 | 118 | 226 | 4 | - | - | 1 | |||
LME-12 | LME-12OP | LME-12AJ | 12 | 22 | 0 -0.009 |
32 | 22.9 | 21 | 1.3 | 265 | 500 | 4 | 78กใ | 7.5 | 1.5 | ||
LME-16 | LME-16OP | LME-16AJ | 16 | 0.009 -0.001 |
26 | 36 | 24.9 | 24.9 | 1.3 | 440 | 735 | 5 | 78กใ | 10 | 1.5 | ||
LME-20 | LME-20OP | LME-20AJ | 20 | 32 | 0 -0.011 |
45 | 31.5 | 30.3 | 1.6 | 610 | 1010 | 5 | 60กใ | 10 | 2 | ||
LME-25 | LME-25OP | LME-25AJ | 25 | 0.011 -0.001 |
40 | 58 | 0 -0.3 |
44.1 | 37.5 | 1.85 | 1000 | 1960 | 6 | 60กใ | 12.5 | 2 | |
LME-30 | LME-30OP | LME-30AJ | 30 | 47 | 68 | 52.1 | 44.5 | 1.85 | 1400 | 2500 | 6 | 50กใ | 12.5 | 2 | |||
LME-40 | LME-40OP | LME-40AJ | 40 | 0.013 -0.002 |
62 | 0 -0.013 |
80 | 60.6 | 59 | 2.15 | 2225 | 4020 | 6 | 50กใ | 16.8 | 3 | |
LME-50 | LME-50OP | LME-50AJ | 50 | 75 | 100 | 77.6 | 72 | 2.65 | 4120 | 7110 | 6 | 50กใ | 21 | 3 | |||
LME-60 | LME-60OP | LME-60AJ | 60 | 90 | 0 -0.015 |
125 | 0 -0.4 |
101.7 | 86.5 | 3.15 | 5690 | 8875 | 6 | 54กใ | 27.2 | 3 |
