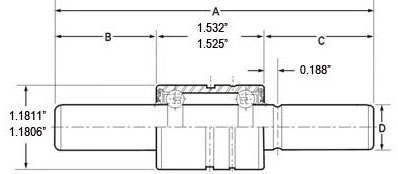

XZSY NO NSK NO FAG NO A  B C D D1 S1 D2 S2
WIB163085 885122 W2434S 3.35 0.51 1.30 0.6267   　 0.4739 1.18
WIB163088   W2346-1S 3.47 0.49 1.45 0.6267   　 0.4739 1.33
WIB163088A   W2346-2S 3.47 0.56 1.38 0.6267   　 0.4739 1.28
WIB163090   W2355S 3.55 0.61 1.41 0.6267   　 0.4739 1.33
WIB163092   W2364-5S 3.64 0.65 1.46 0.6267   　 0.4739 1.36
WIB163092A 885477 W2364S 3.64 0.99 1.12 0.6267   　 0.4739 1.02
WIB163093   W2366-1S 3.66 0.65 1.49 0.6267   　 0.4739 1.33
WIB163099 885474 W2387S 3.88 0.89 1.46 0.6267   　 0.4739 1.32
WIB1630100   W2391S 3.92 0.65 1.74 0.6267 0.4739 0.58 0.4739 1.63
WIB1630100A   W2394S 3.95 0.84 1.58 0.6267   　 0.4739 1.44
WIB1630101   W2397S 3.98 0.98 1.46 0.6267   　 0.4739 1.36
WIB1630102A 885147 W2404S 4.04 0.88 1.63 0.6267   　 0.4739 1.50
WIB1630103   W2405-1S 4.05 0.65 1.87 0.6267   　 0.4739 1.69
WIB1630105C BWF30-15-A-RR6 W2415-1S 4.15 0.93 1.70 0.6267   　 0.4739 1.56
WIB1630106   W2417S 4.17 1.18 1.46 0.6267   　 0.4739 1.32
WIB1630106A   W2418-3S 4.18 0.73 1.92 0.6267   　 0.4739 1.61
WIB1630107   W2420-1S 4.20 0.81 1.87 0.6267   　 0.4739 1.69
WIB1630109   W2431-2S 4.31 0.99 1.79 0.6267   　 0.4739 1.66
WIB1630115   W2453-1S 4.54 0.65 2.35 0.6267   　 0.4739 1.44
WIB1630124B 885326 W2488S 4.88 1.65 1.70 0.6267   　 0.4739 1.56
WIB1630102   W3399-2S 4.00 0.69 1.78 0.6275   　 0.4739 1.70
WIB163085-OS 885122-OS2 W6334S 3.35 1.30 0.51 0.6290   　 0.4744 1.18
WIB163092-OS 885477-OS W6364-1S 3.64 0.99 1.12 0.6290   　 0.4744 1.08
WIB163099-OS 885474-OS2 W6387S 3.88 0.89 1.46 0.6290   　 0.4744 1.33
WIB1630101-OS   W6397-2S 3.98 0.95 1.50 0.6290   　 0.4744 1.38
WIB1630101-OS   W6397-3S 3.98 0.98 1.46 0.6290   　 0.4744 1.36
WIB1630103-OS   W6407-1S 4.07 0.85 1.70 0.6290 0.4739 0.71 0.4744 1.56
WIB1630104-OS   W6407-2S 4.08 0.77 1.77 0.6290   　 0.4744 1.65
WIB1630105B-OS   W6415-1S 4.15 0.93 1.70 0.6290   　 0.4744 1.57
WIB1630106B-OS 885439-OS2 W6418S 4.18 0.99 1.66 0.6290   　 0.4744 1.53
WIB1630112-OS 885327-OS2 W6440-5S 4.41 1.18 1.70 0.6290   　 0.4744 1.56
WIB1630115B-OS   W6452-1S 4.53 2.35 0.65 0.6290 0.4739 2.16 0.4744
WIB1630124-OS 885326-OS2 W6488S 4.88 1.65 1.70 0.6290   　 0.4744 1.56
WIB1630102-OS   W7399-2S 4.00 0.69 1.78 0.6295   　 0.4759 1.70
